GearUP AVP-63 Automatic Voltage Protector Price In Bangladesh

GearUP AVP-63 Automatic Voltage Protector -220V

Name: GearUP AVP-63 Automatic Voltage Protector Price In Bangladesh
Price: 900.00 BDT
Availability: InStock

Add your review

Original price was: 1,200.00৳.Current price is: 900.00৳.

(-25%)

GearUP AVP-63 Automatic Voltage Protector -220V

Brand: GearUP
Model: AVP-63
Power Supply : AC: 320V / DC: 80–300V
Warranty: 1 year (Burn and physical damage not applicable)

🏆Minimum 200 Taka or full Payment Advance is Required!

GearUP

Categories: All Product, Best Seller, Home Appliances Tags: adjustable voltage protector, Adjustable voltage protector manual, Adjustable voltage protector settings, amicismart automatic over/under voltage setting, automatic voltage protector, Automatic voltage protector price, Automatic Voltage Protector price in Bangladesh, automatic voltage protector price in bd, Automatic Voltage Protector Socket, avp-63 manual, avp-63 schneider, Best automatic voltage protector, Gearup avp 63 automatic voltage protector manual, Gearup avp 63 automatic voltage protector manual pdf, Gearup avp 63 automatic voltage protector price, Gearup avp 63 automatic voltage protector wiring diagram, GearUP AVP-63 Automatic Voltage Protector -220V, GearUP AVP-63 Automatic Voltage Protector Price In Bangladesh, hight voltage protector, how to reset voltage protector, sara voltage protector setting, ssuca voltage protector setting, voltage protector connection, voltage protector price in Bangladesh, voltage protector walton, Walton Voltage Stabilizer, Walton Voltage Stabilizer price in bd, wifi voltage protector

Description
Reviews (0)

GearUP AVP-63 Automatic Voltage Protector -220V AT THE BEST PRICE IN BANGLADESH FROM GADGET HUB ONE

The GearUP AVP-63 Automatic Voltage Protector is now available in Bangladesh. Get the original products at the most affordable price only at GADGETHUB1.COM and enjoy the quality with the promise of the best customer service in Bangladesh.

GearUP AVP-63 Automatic Voltage Protector

GearUP AVP-63 Automatic Voltage Protector Key Functions:

Protection Features

Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).
Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).
Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).
Automatic Recovery: Restores power after fault conditions (adjustable via P-15).
Fast Power-Down: Emergency cutoff (enabled via P-14).

Monitoring & Display

Real-time voltage display (AC/DC).
Real-time current display (AC only; DC mode shows voltage only).
Indicators for faults (>V, <V, >A) and normal operation (POWER).

Programmable Settings

Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
Password protection (P-17) to prevent unauthorized changes.

2. Technical Specifications

Category	Details
Power Supply	AC: 320V / DC: 80–300V
Frequency	50/60Hz (AC only)
Voltage Range	AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)
Max Current	40A/63A (configurable)
Accuracy	Voltage: <1%
Response Time	Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10)
Environmental	-25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C)
Physical	512 × 960mm, 15kg

3. Setup & Operation Guide

A. Initial Configuration

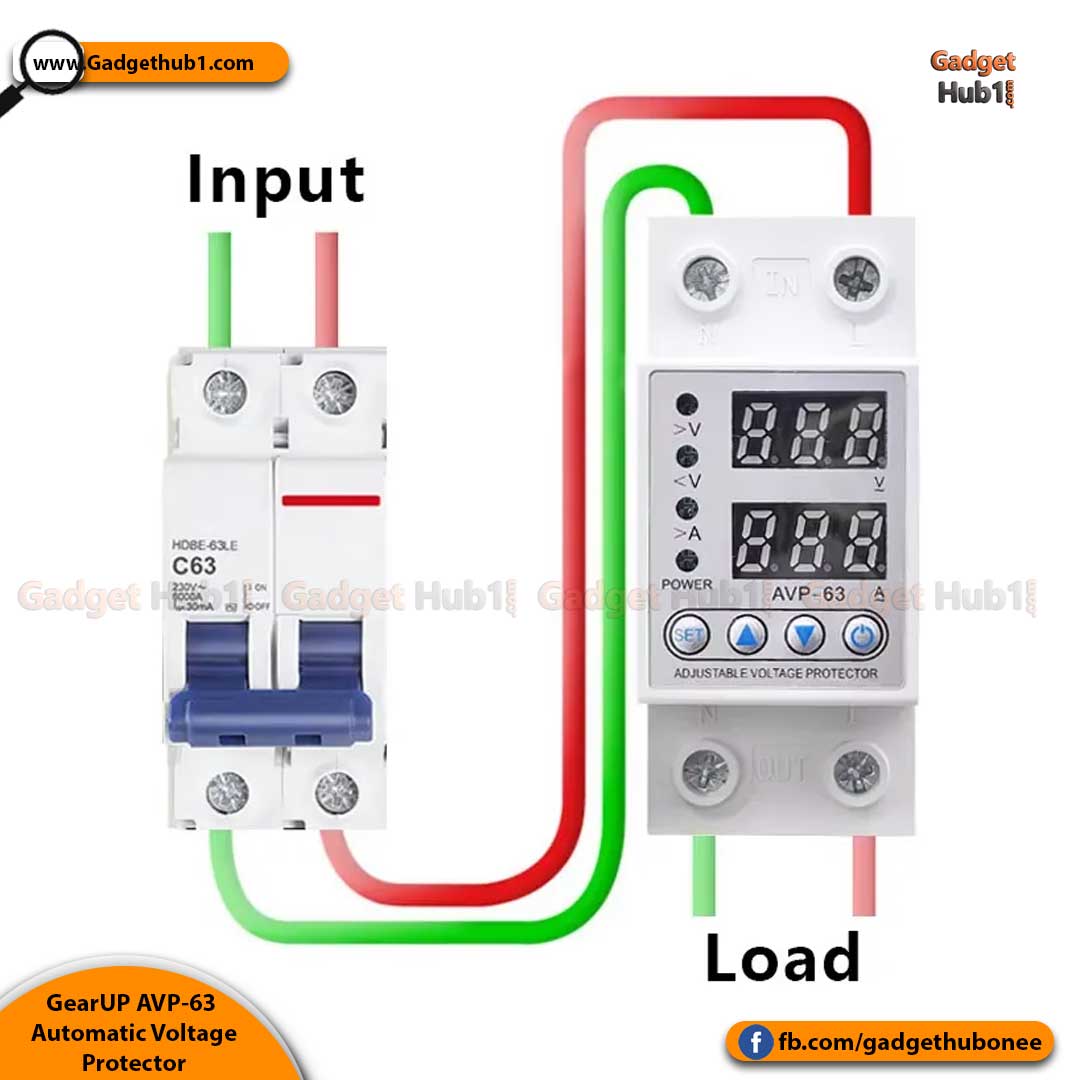

Power Connection:

Wire terminals (N-L) to AC/DC source within rated limits.

Menu Navigation:

Use front-panel buttons to adjust parameters (P-1 to P-17).

B. Critical Settings

Parameter	Purpose	Default	Range
P-3/P-5	Over/under-voltage thresholds	300V/80V	AC: 80–300V / DC: 130–300V
P-9	Max current limit	63A	14–63A
P-15	Auto-recovery after fault	ON	ON/OFF
P-17	Password lock	000	000–999

C. Calibration

Voltage: Adjust via P-8 (±10%).
Current: Calibrate with P-12 (±10%).
Frequency (AC only): Fine-tune with P-13 (±2.5%).

D. Safety & Recovery

Manual Reset: Required if auto-recovery (P-15) is disabled.
Event Logging: Overcurrent counts (P-11) track fault history.

4. Usage Notes

DC Mode: Current display disabled; only voltage monitored.
Energy Saving: Enable P-16 to reduce idle power consumption.
Altitude Warning: Performance may degrade above 2000m.

How to Use the Device

Power Connection:

Connect supply terminals (N-L) to AC (320V) or DC (80-300V) power.
Ensure voltage/frequency are within rated limits.

Initial Setup:

Use the menu selection buttons to navigate parameters (P-1 to P-17).
Adjust thresholds (e.g., over/undervoltage, current limits) as needed.

Operation:

Indicators: Monitor >V, <V, >A, and POWER for system status.

Protections:

Over/undervoltage triggers a shutdown (adjustable delay: P-7, P-10).
Overcurrent trips after a set time (P-10).
Recovery: Automatic (P-15) or manual reset after faults.

Calibration:

Use P-8 (voltage) and P-12 (current) to fine-tune readings.
For AC systems, adjust frequency via P-13.

Safety Features:

Enable fast power-down (P-14) for emergency cutoff.
Set a lock code (P-17) to prevent unauthorized changes.

Environment:

Operate within temperature (-25°C to +50°C) and altitude (≤2000m) limits.

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.
